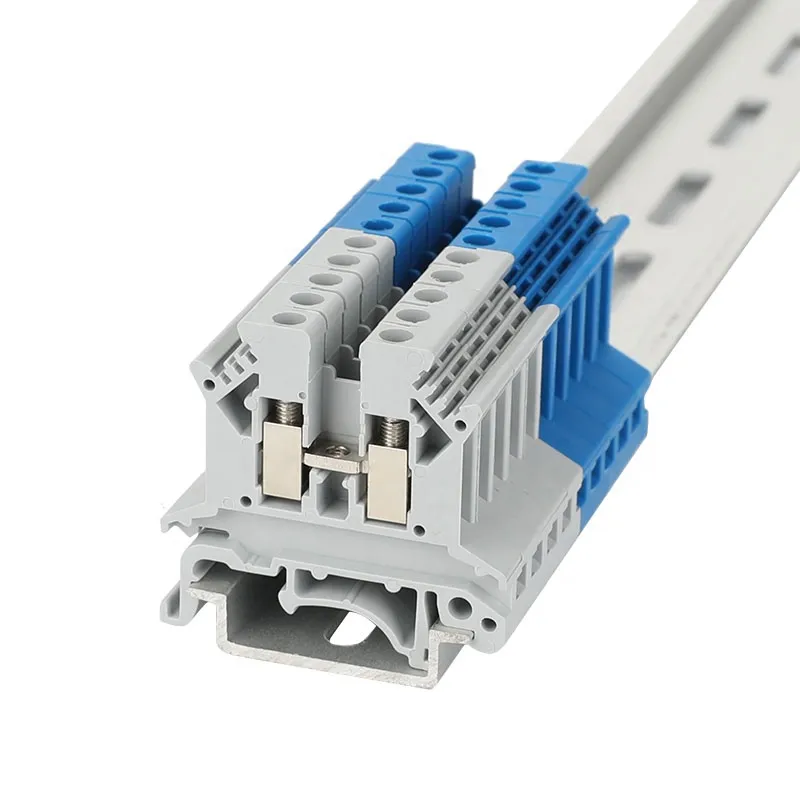

Din Rail Mounted Terminal Blocks
| Type : screw terminal | L*W *H (mm) : 42.5*46.2*8.2 |
| Color: grey , blue ,other color can be customized | Material: Nylon PA66 |
|
Cross section solid /soft cable: 0.2-10mm2/0.2-6mm2 |
Mounting type: NS 35/7.5 |
| Rated: Voltage/Current: 800v/57A | Conductor size: 24-8 AWG |
| Standard: IEC 60947-7-1 | Packing Detail:12.94g/pc, 50PCS/BOX,1500PCS/CTN |
Features:
The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section
- The JUK universal screw terminal block series has the typical features which are decisive for practical applications.
- Made from engineering flame retardants nylon PA66 with brass screw metal.
- With universal foot which can be installed on Din Rail NS 35.
- It can connect two conductors with ease, even large conductor cross sections are not a problem.
- Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
- All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
