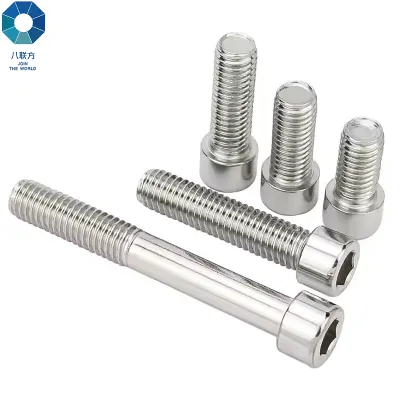

A socket head cap screw (also known as a socket cap screw or simply a socket screw) is a type of fastener typically made from various materials, including steel, stainless steel, or alloy steel, characterized by its cylindrical head and a hexagonal (or socket) recess for driving. A socket head cap screw features a cylindrical head and a hexagonal recess. This specialised drive requires a hex wrench or Allen key to tighten or loosen the screw. Hex socket cap screws have threads along their length and can either be fully or partially threaded, depending on the application.
Characteristics
1. Head Design:
- Socket head cap screws have a cylindrical head with a flat top. The sides are straight, which allows for a consistent fit in applications where the screw may be partially recessed into a material.
2. Drive Type:
- They are designed with an internal hexagon socket. This requires a hex (Allen) wrench for tightening or loosening. The internal drive design allows for higher torque applications than traditional external screw heads.
3. Threading:
- These screws typically have machine threads, which can be standard (UNC) or metric (M), and are available in various lengths and diameters.
4. Material and Finish:
- Socket head cap screws can be made from different materials and finishes, such as plain, zinc-plated, black oxide, or stainless steel. The choice of material often depends on the application's environmental conditions and strength requirements.
Applications
- Machinery: Commonly used in mechanical assemblies and equipment due to their strength and ability to handle high torque.
- Automotive: Widely used in automotive applications for securing components in engines, chassis, and other parts.
- Furniture and Fixtures: Used in both home and industrial furniture where strength and aesthetics are important.
- Construction: Utilized in various construction applications where strong fastening is required.
- Electronics: Found in electronic devices and appliances to securely hold components together.
Advantages
Socket screws are usually the go-to choice when you can't use bolts and nuts. The hex socket, also known as an Allen screw drive, has six sides that can handle pressure, which works perfectly with an Allen wrench or hex key. This design makes it less likely to slip out of place compared to other types of screw heads.
Compared to regular screws, hex socket screws of the same size can handle more twisting force and hold things tighter. That means you don't need to use as many screws to get the job done. Using fewer screws cuts down on the overall weight of your project. It also saves you money and time since you won't have to drill as many holes or tap as many threads.
These screws go by several names-like Allen head screws, Allen drive screws, hex socket screws, hex cap screws, hex socket head cap screws, and so on.
A lot of people in the industry just call them socket screws. But keep in mind, there's another kind of screw also called a socket screw that's used for light sockets. No matter what you call them, socket head screws are the best bet when you can't use bolts and nuts. Their round, flat head fits well in tight spots where other fasteners wouldn't fit easily.
Considerations
- Tool Requirement: A specific tool (hex wrench) is needed for installation, which might not be readily available to everyone.
- Material Selection: Like all fasteners, the choice of material and finish should be considered based on the specific application requirements, including environmental factors and load-bearing capacity.
Socket head cap screws are a versatile choice for a range of applications demanding high strength and reliability. Their design allows for effective fastening, particularly in spaces where a powerful grip is required without protruding heads, making them popular in engineering and manufacturing sectors.
