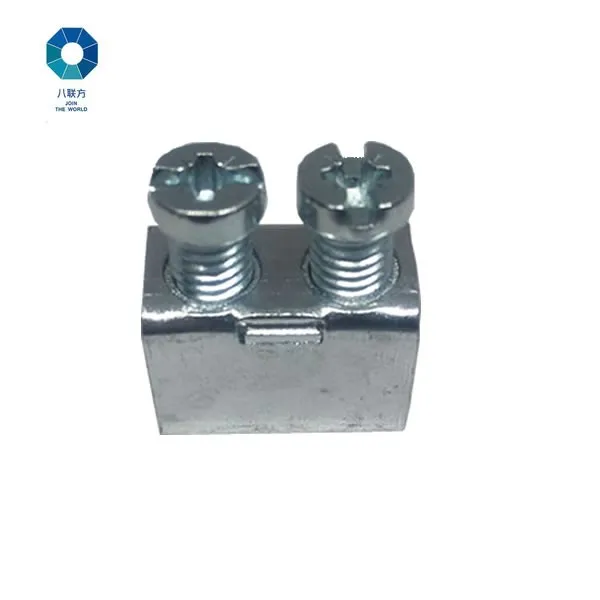

Item: Sn/Zn/Ni Plated Electrical Cage Terminal
Cage Terminal
This product is desiged to replace the expensive and big brass terminals, advantages are small size, low cost, easy assemble and fixing.
Its widely used in electric meters gradually.
Sample show:
The innovative Sn/Zn/Ni Plated Electrical Cage Terminal surface treatment is a RoHS compliant, cost-effective and sustainable alternative to cadmium plating. It provides long-lasting corrosion resistance to exposed connector surfaces used in commercial and military aircraft, transport vehicles and marine transportation. Black zinc nickel plating provides the same level of harsh environmental protection, temperature range and electrical performance as cadmium plating, but without the toxicity and negative environmental impact.
Features
Fully compliant with the RoHS directive to eliminate the use of environmentally hazardous heavy metal
Now available on a wide variety of connectors and accessories including MKJ, CA 5015, BKA ARINC 600 and Micro-D 83513
Conductive and non-reflective black alloy finish is approved for 500 hours of salt spray endurance
Quickly emerging as the new Defense Industry standard
Shell-to-Shell Continuity Less than <2.5mΩ
Mechanical 500 mating cycles, non-magnetic
Temperature Range of -65° to +175°C
Zinc Plating is frequently used in a wide variety of manufacturing fields as an outstanding example of anti-rust plating for iron materials. Zinc film applied to iron shows a long lasting anti-rust effect even if the film is scratched exposing the surface of the iron.
This is an anti-rust coating made by alloying 6-18% nickel into a zinc base, and then applying Cr3 passivation in post-processing. Low nickel plating comes in blue, and high nickel plating comes in both blue and black. After heat treatment it also demonstrates a superior level of corrosion resistance. The level of corrosion resistance depends on the thickness of the coating. For purposes of economy, 5μm is common, and at that thickness, the coating can clear a 750 hour(until red rust occurs) salt water spray test.
