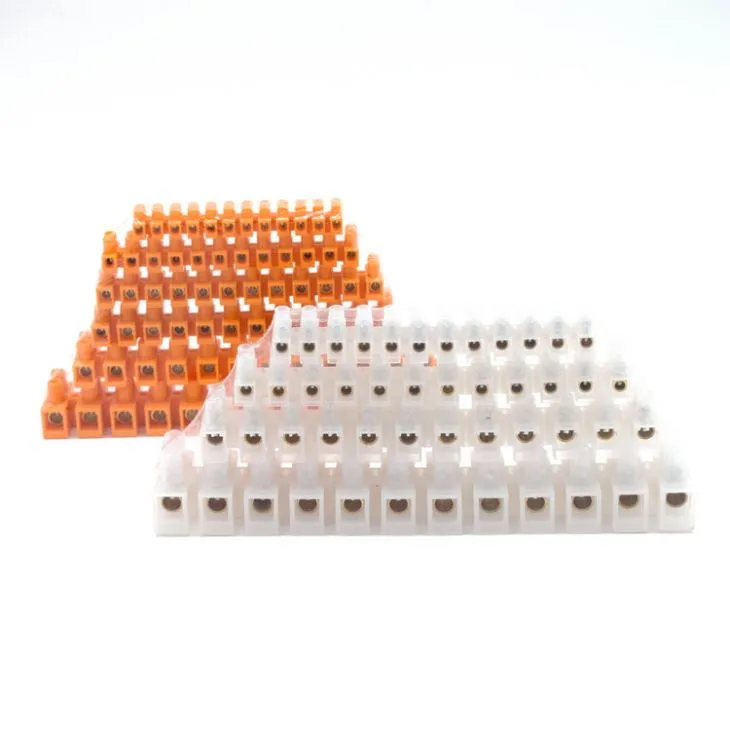

Polyethylene Terminal Blocks
Terminal Block (Wire Connector)
Type: U Type or H Type
Material: Made from PA, PE or PP
Terminal Materials: Brass or Brass nickel plated
Screw: Galvanised steel
Color: Natural or Black
|
FEATURE: |
EASY-CUT & LOW-COST ALL SCREWS ARE CAPTIVE & RAISED FOR EASY WIRING |
||||||||||
|
CODE |
CROSS SECTION |
CURRENT RANGE |
RATED VOLTAGE |
DIMENSIONS (mm) |
|||||||
|
L |
W |
Φ1 |
Φ2 |
D |
d |
H |
h |
||||
|
TH-3A |
4 mm2 |
3~24A |
380V |
93 |
16.8 |
2.8 |
2.3 |
7.8 |
6 |
13.6 |
7.6 |
|
TH-5A |
6 mm2 |
5~32A |
380V |
115 |
18.8 |
3.3 |
2.6 |
10 |
8 |
15 |
8.8 |
|
TH-10A |
10 mm2 |
10~57A |
400V |
129 |
20.7 |
4.3 |
2.8 |
11 |
9 |
16.2 |
9.6 |
|
TH-15A |
12 mm2 |
15~61A |
400V |
137 |
22.5 |
4.5 |
2.8 |
12 |
10 |
18.8 |
10.2 |
|
TH--30A |
16 mm2 |
30~76A |
400V |
165 |
25.5 |
5.5 |
3 |
14 |
11 |
19.8 |
11.2 |
|
TH-60A |
25mm2 |
60~101A |
400V |
187 |
31.2 |
6.5 |
3.8 |
16.5 |
13 |
25.5 |
14.8 |
|
TH-80A |
35mm2 |
80A |
400V |
226.8 |
36.1 |
8 |
4 |
19.2 |
13.2 |
29 |
18 |
|
TH-100A |
40mm2 |
100A |
450V |
254.6 |
45 |
9 |
3.7 |
20.5 |
19.2 |
34.7 |
22.3 |
Cross Section:
rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2 is 4mm2
Φ1 wire entry hole diameter
Φ2 fixing hole diameter
