Shunt resistors are used to measure currents that would potentially damage an ammeter.
This could be a result of the magnitude of the current passing through the circuit or the possibility of current spikes.
Packing qty per carton will be different according to different unit weight.
Place of origin: china
Parameters -- With wide voltage measurement range.
Accuracy -- Good stability and high measurement accuracy.
Function -- Can display the trend of the measured quantity.
Installation -- Compact shape and lightweight, convenient installation and easy to use.
Application -- Mainly used in industrial and mining enterprises, metallurgy, complete sets of equipment and various electronic control devices.
Manganin Copper Shunt Resistors support rated currents up to 1KA and feature special alloy materials that can withstand pulse currents several times higher than the rated current. The shunt's special heat treatment process achieves a low current coefficient, providing stability in high current applications. The SHA series has a thermal potential of less than 0.5pV/°C for copper, with minimal effect on voltage output in the mV range. The SHA series' flat construction results in an inductance of less than 3nH, creating a shunt compatible with high frequency applications.
Features
Four-terminal Kelvin connection
Rated power of 25W (6918), 36W (8518), or 50W (8536)
Extremely low inductance
Excellent long-term stability and frequency characteristics
Low thermal electromotive force (EMF)
Small resistance shift under load
Applications
Battery management systems
Electronic power
Frequency converter
Uninterruptible power supplies (UPS)
Motor control
Electronic load equipment

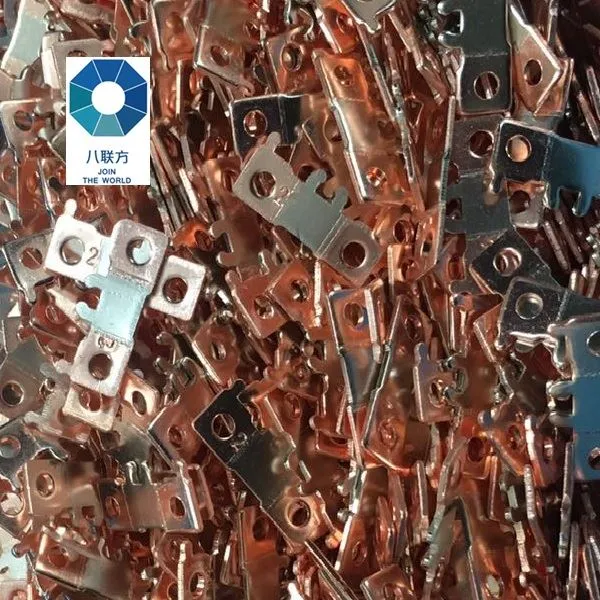

Manganin Shunt Terminal is a precision resistance element for making high-grade metering voltage, current, bridge, potentiometer and other instruments, and is more suitable for making standard resistors for benchmarks. The manganese-copper shunt (Static Copper Plate with Manganese sampling resistor) of the electric energy meter is widely used in various digital electric energy meters as an electric quantity measuring element. It is made of Copper Manganese precision resistance alloy material.
