FOUR METERS ENERGY BOX
MAIN PICTURE :
TECHNICAL DATA SHEET:
| INSTALLATION NETWORK |
LV: AC220V /AC380V |
| INSTALLATION TYPE |
WALL MOUNTED / polc MOUNTED |
| INSTALLATION LOCATION |
INDOOR /OUTDOOR |
| FREQUENCY |
50HZ OR 60HZ |
| MAIN BUSBAR RATED SHORT TIME WITHSTAND CURRENT LOW |
30KA |
| INSULATION RESISTANCE |
≥20MΩ |
| RATED INSULATION VOLTAGE UI |
800V |
| MATERIAL |
PC+ ABS |
| PROTECTION CLASS |
IP43 |
| LIFT EXPECTANCY |
≥ 30 YEARS |
| MAIN BUSBAR RATED CURRENT IN | 10A-250A |
| DIMENSIONS |
798*670*165mm |
INSTALLATION:
When installation,please carefully check the intergrity of the components of the meter box.
Meter box should be installed vertically.Title angle shall not exceed 54 degrees.
The installation site should be chosen so that there is not excessive vibration or shock, nor should there be any corrosion of electrical components.
Strong bases, oxidizing agents, acids, amines, ketones with hydrogen, and oxidation of soluble substances in aromatic solvents are all substances that the meter box utilized cannot withstand.Do not mix with such chemicals, please.Sharp items and hard collisions should be avoided when using the meter box as they can scratch its surface.
To prolong the life of the watt-hour meter, you should aim to locate the meter box in a cool, dry location away from continuous direct sunlight.
Prior to installation, you should remove the two central lid screws that are situated beneath the meter box and then open the box in accordance with the instructions inside. This is because the fixed parts of the meter box that are used for attaching on the wall or on the cross arm are all placed inside the box.
After settling the expansion tube and opening the appropriate hole in the wall, attach it to the base's wall using the best cover.
SINGLE PHASE FOUR METERS ENERGY BOX is made of transparent PC material, and the base of the meter box is made of ABS material. The base and cover are connected by a stainless steel shaft, and circuit breakers, junction boxes, relays and copper wires can be installed at appropriate locations in the meter box.
One-way measurement of single-phase two - wire active energy consumption. This has nothing to do with the direction of the load current. Comply with IEC 62053-21.
The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). KWH meter is easy to with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Whether you have a traditional meter or a smart meter installed, the meter in your home monitors your daily electricity usage. See tips for reading each type of meter based on your rate plan.

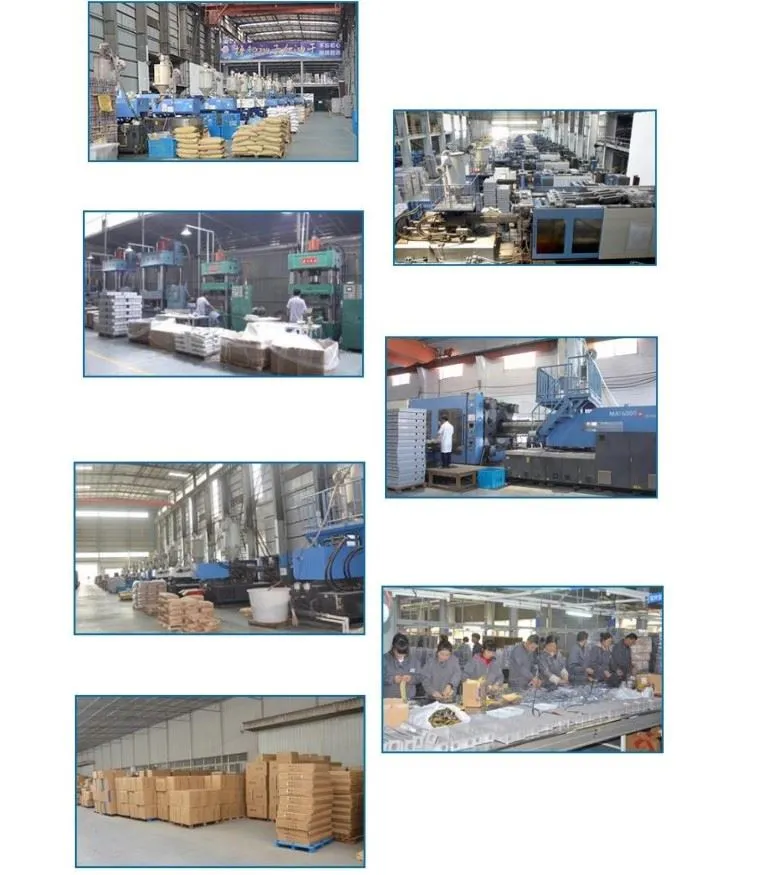

WORK SHOP :
STRUCTURE DISPLAY:

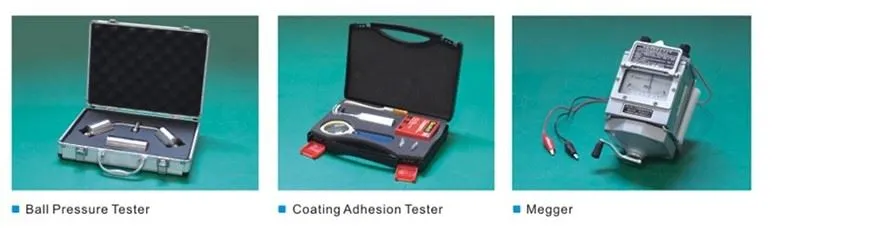

TEST EQUIPMENT:
